uPVC ASTM Plumbing System
  • Lead Free
  • UV Stabilised
  • Resistance to Chemcials
  • Cost Effective
  • Prevent Bacterial Growth
  • Safe for Potable Water
  • More Pressure Bearing Capacity
  • Long Life
  • High Impact Strength
  • Easy & Leak Proof Joints
    Available Sizes:
            Pipes - Sch. 40 & Sch. 80 : ½” (15mm) to 6” (150mm) IPS
            Fittings – Sch. 40 & Sch. 80 : ½” (15mm) to 4” (100mm) IPS

    Description
    Pipes
    Fitting 40
    Fitting 80
    Solvent Cement
    Standred & Specification
    Features

    Godavari Group is pleased to introduce Waterflo uPVC Solvent weld plumbing system for transportation and distribution of potable water. It is technically superior, cost effective and ensures uninterrupted flow of water from overhead / underground tank to toilet block, kitchen sink or any other utility. WATERFLO uPVC Pipes and Fittings are LEADFREE and hence non toxic, easy to install and are made for life time trouble free service. WATERFLO Pipes are available from sizes ½” to 6” and Fittings are available from sizes ½” to 4”. Pipes are manufactured as per ASTM D 1785 Sch. 40 & 80 and Fittings are manufactured as per ASTM D 2466 Sch. 40 & as per ASTM D 2467 Sch. 80.


    FIELD OF APPLICATIONS :

    DOMESTIC : Cold Water Plumbing application in homes, offices, hotels, residential complexes, commercial complexes etc.,  Pipes for hand pumps.

    INDUSTRIAL : Industrial Process lines, R.O. (Reverse Osmosis) / Water Purifier plants, Salt water lines, Aggressive / corrosive fluid transportation, Dye plants, Chrome/Zinc Plating, Tanning Plants etc. Sugar, Paper and Distillery Industries, Coal washing and ash handling.

    OTHERS : Swimming Pools, Water Distribution Mains.
    Pipe Sch. 40
    Size
    (mm.)     		Size
    (in.)
    Standard Packing
    3 mtrs
    6 mtrs

    15

    ½”

    50

    30

    20
    ¾”
    40
    25
    25
    1”
    25
    20
    32
    1¼”
    15
    10
    40
    1½”
    10
    10
    50
    2”
    7
    7
    65
    2½”
    4
    4
    80
    3”
    4
    4
    100
    4”
    2
    2
    Pipe Sch. 80
    Size(in.) Std. Pkg. Quantity
    (Box)
    20 ml tube 100
    		 600
    50 ml tube 50
    		 300
    100 ml tube 25
    		 150
    118 ml tube 24 144
    236 ml tube 24 96
    473 ml tube 12 48
    946 ml tube 6 24
    STANDARDS & SPECIFICATIONS

    ASTM D 1784
    Specification for Rigid PVC Compounds.

    ASTM D 1785
    PVC Plastic Pipes, SCH 40 & SCH 80.

    ASTM D 2466
    Socket Type PVC Plastic Fittings, SCH 40.

    ASTM D 2467
    Socket Type PVC Plastic Fittings, SCH 80.

    ASTM D 2564
    Solvent Cements for Plastic Pipes & Fittings.

    ASTM D 2774
    Underground Installation of Thermoplastic Pipes.

    PRESSURE RATING OF CPVC PIPES (SDR 11 & SDR 13.5)
    Pipes Size in Inch 1/2 3/4 1 11/4 11/2 2 2 1/2 3 4 6
    Pipes Size in mm 15 20 25 32 40 50 65 80 100 150
    SCH 40 Average Outer Diameter (mm) 21.34   26.67 2.87 33.75 106.20 33.40  42.16  48.26 60.32 73.02       88.9    114.3       168.28
    Min. Wall Thikness (mm) 2.77 2.87 3.38  3.56 3.68 3.91 5.16 5.49 6.02 7.11
    Max. Work Pressure Rating (kg/cm2) at 23OC 42.19 33.75  31.64  26.01 23.20 19.69 21.09 18.28 15.47 12.66
    Burst Pressure (kg/cm2)) 131.70  106.20 99.30 81.40 73.10 61.4 66.9 57.9 49 38.6
    SCH 80 Average Outer Diameter (mm) 21.34   26.67   33.40 42.16 48.26 60.32 73.02 88.9 114.3 168.28
     Min. Wall Thikness (mm) 3.73 3.91 4.45 4.85 5.08 5.54 29.53 7.62 8.56 10.97
    Max. Work Pressure Rating (kg/cm2) at 23OC  59.76 48.51 44.29 36.56 33.04 28.12 7.01 26.01 22.5 19.69
    Burst Pressure (kg/cm2)  187.60 151.70 139.30 114.50 104.10 88.9 93.8 82.7 71.7 61.4
    BENEFITS & FEATURES

    LEAD FREE :
    Waterflo uPVC Pipes and Fittings being lead free so are non toxic and hence favoured for use in applications such as potable water.

    UV STABILISED :
    Waterflo uPVC Pipes and Fittings are U.V. Stabilised. U.V. acts as a strong catalyst for the oxidation processes which breaks down the polymer chains, leading weakness in the pipes and fittings and do loss of hydrostatic strength. Above effect is very much common with materials like PP and PE.

    RESISTANCE TO CHEMICALS :
    Waterflo uPVC Pipes and Fittings resist chemical attack by strong acids, alkalies, salt solutions, alcohols and many other chemicals.

    SAFE FOR POTABLE WATER :
    Waterflo uPVC pipes and fittings are non toxic and lead free which makes them a safe material for potable water.

    MORE PRESSURE BEARING CAPACITY :
    Waterflo uPVC Solvent Weld ASTM Plumbing System makes its pressure bearing capacity twice than that of the threaded pipe.

    OTHER FEATURES AND BENEFITS :
    • Long Life

    • Cost Effective

    • Non Corrosive

    • Prevent Bacterial Growth

    • High Impact Strength

    • Strong and light weight

    • Fire Resistant

    • Easy & Leak Proof Joints

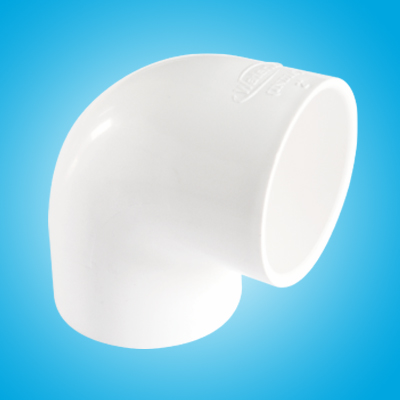

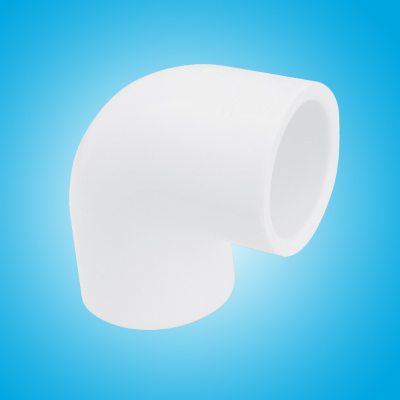

    Elbow
    Size(mm) Size(in.) Std. Pkg. Quantity
    (Box)
    15 ½" 100
    		 600
    20 ¾" 50
    		 300
    25 1" 25
    		 175
    32 1¼" 15
    		 105
    40 1½" 15
    		 75
    50 2" 9
    		 45
    65 2½" --
    		 36
    100 4" --
    		 12
    #

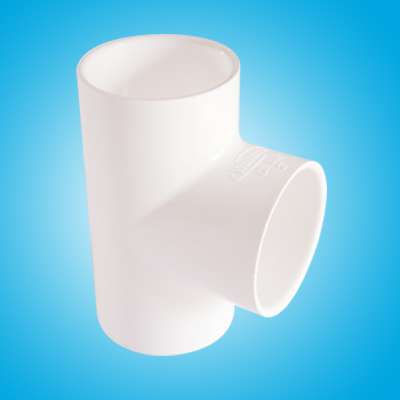

    Equal Tee

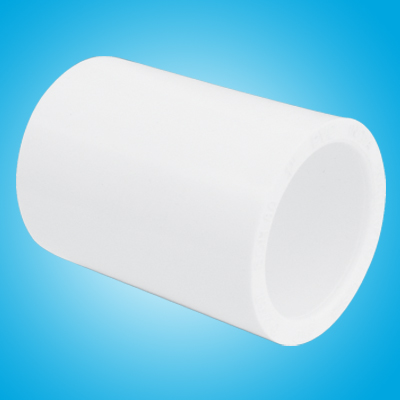

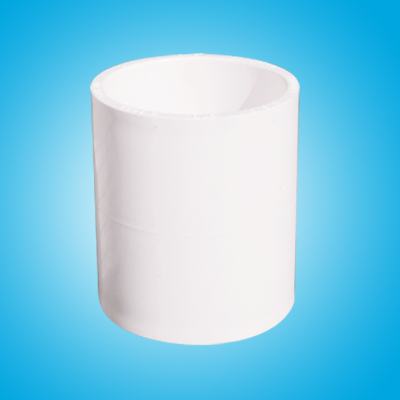

    Coupler

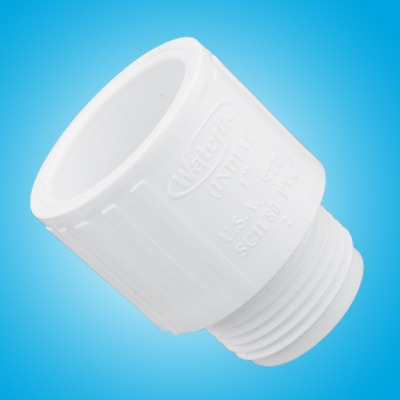

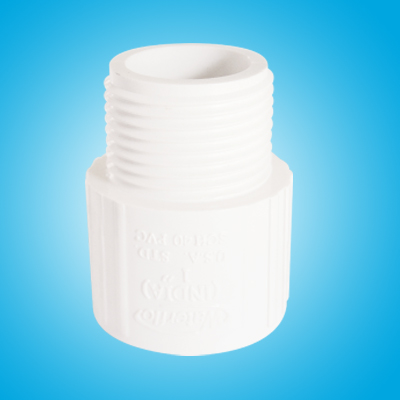

    MTA

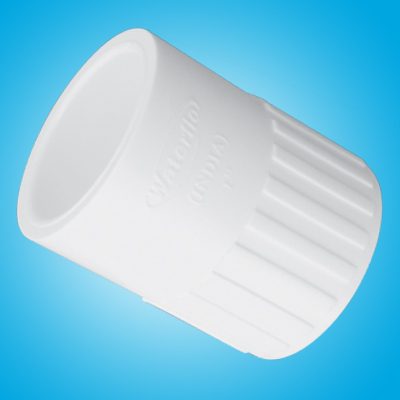

    FTA
    End Cap

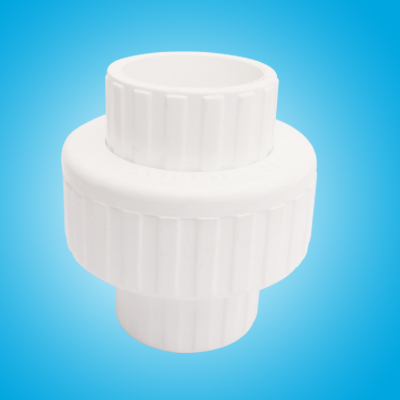

    Union

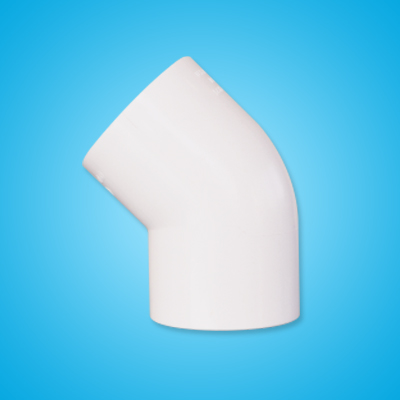

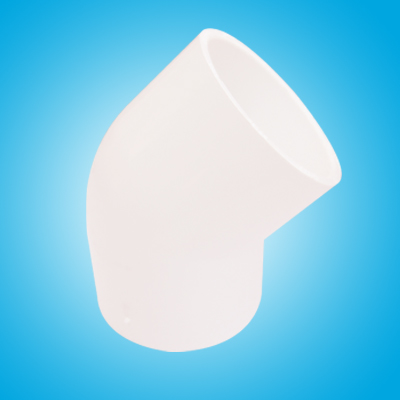

    Elbow 45
    Cross Tee

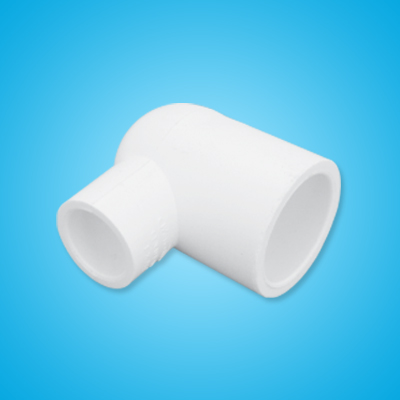

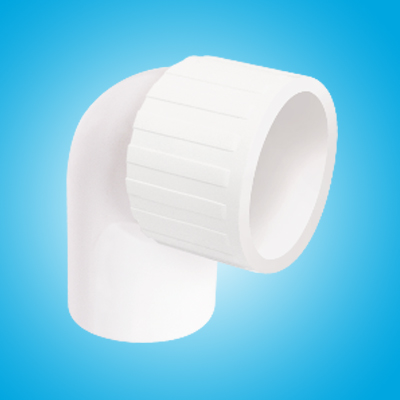

    Reducer Elbow

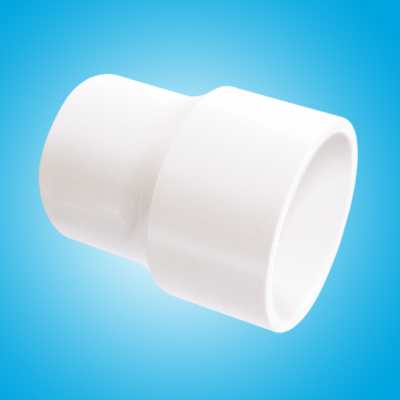

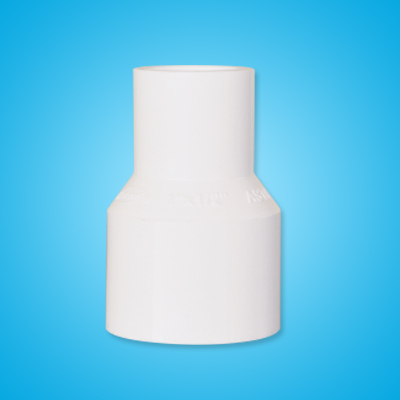

    Reducer Coupler

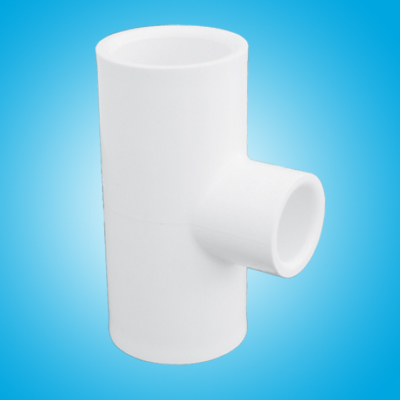

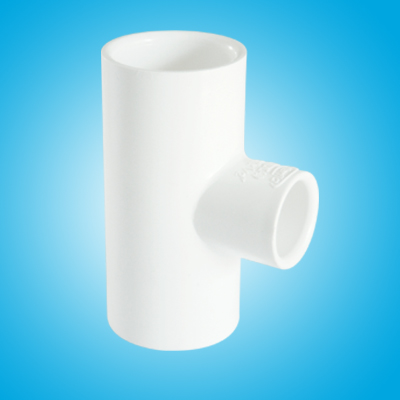

    Reducer Tee

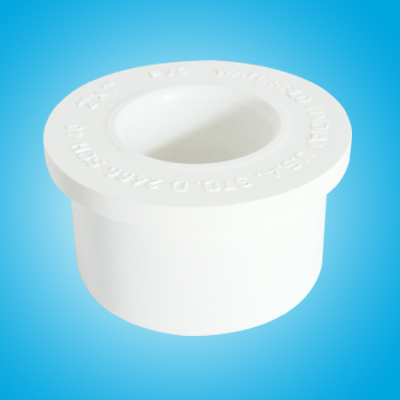

    Reducer Bush
    Elbow 45

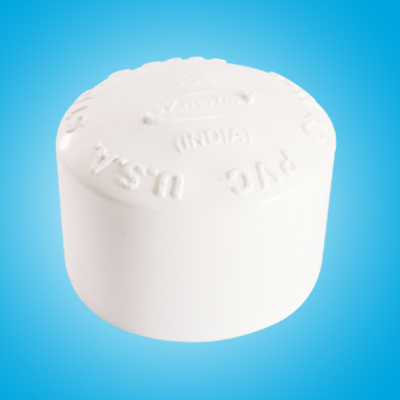

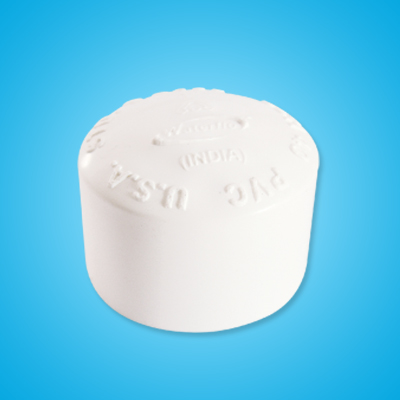

    Plain End Cap
    Reducer Coupler
    Reducer Elbow

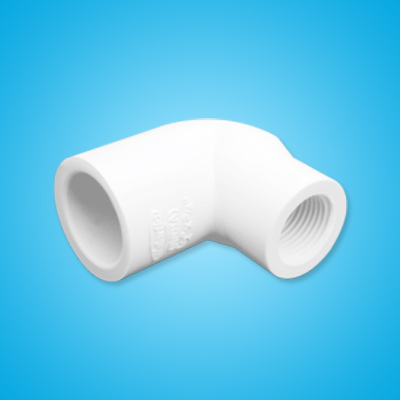

    Threaded Reducer Elbow

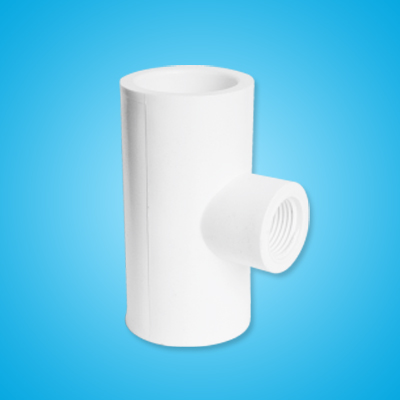

    Threaded Reducer Tee
    Elbow
    Equal Tee
    Coupler
    MTA

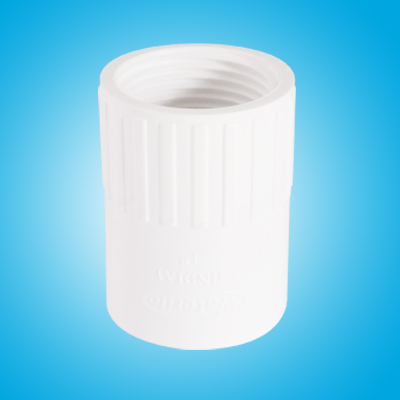

    FTA

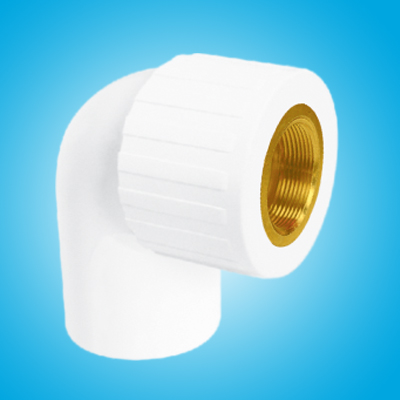

    Brass Elbow

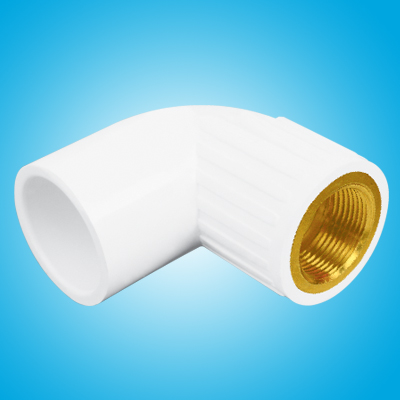

    Reducer Brass Elbow

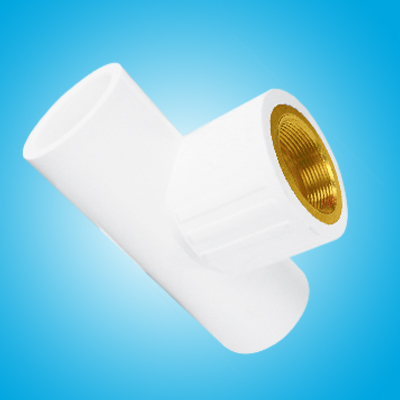

    Brass Tee

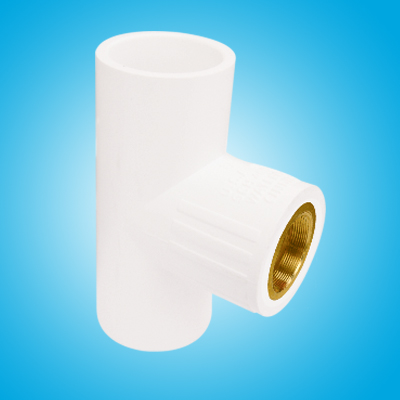

    Reducer Brass Tee

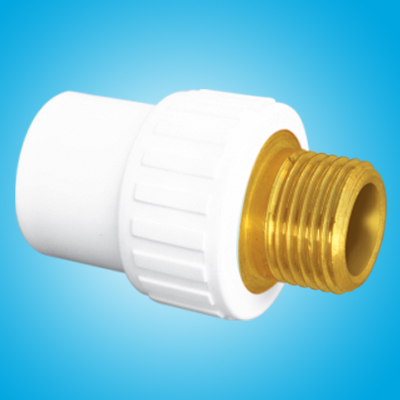

    Brass MTA

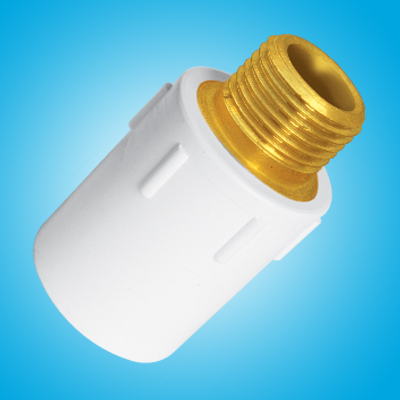

    Reducer Brass MTA

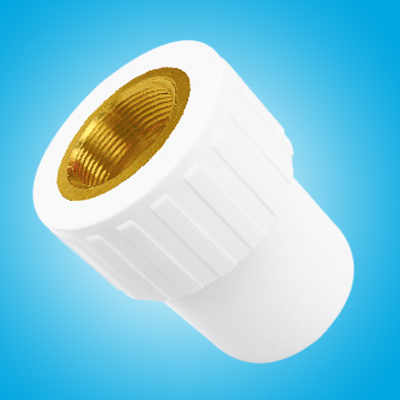

    Brass FTA

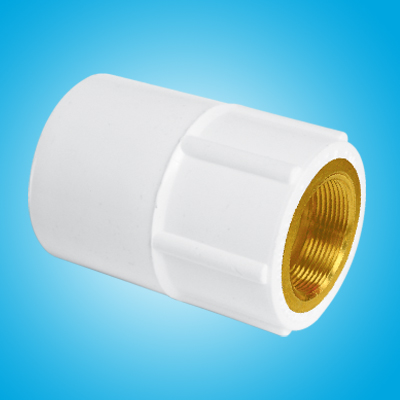

    Reducer Brass FTA
    Reducer Tee

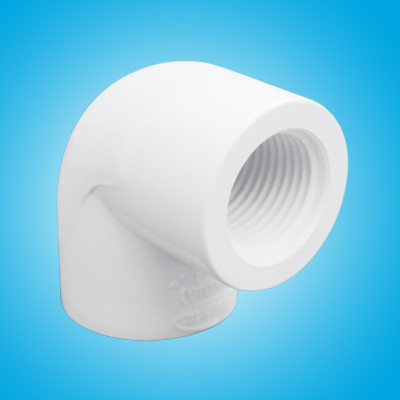

    Elbow Threaded

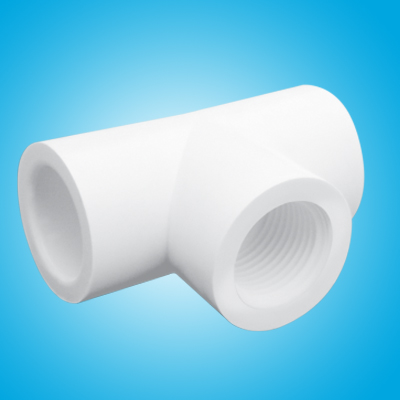

    Tee Threaded

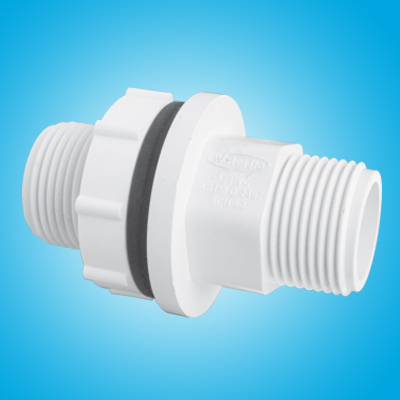

    Tank Connector
